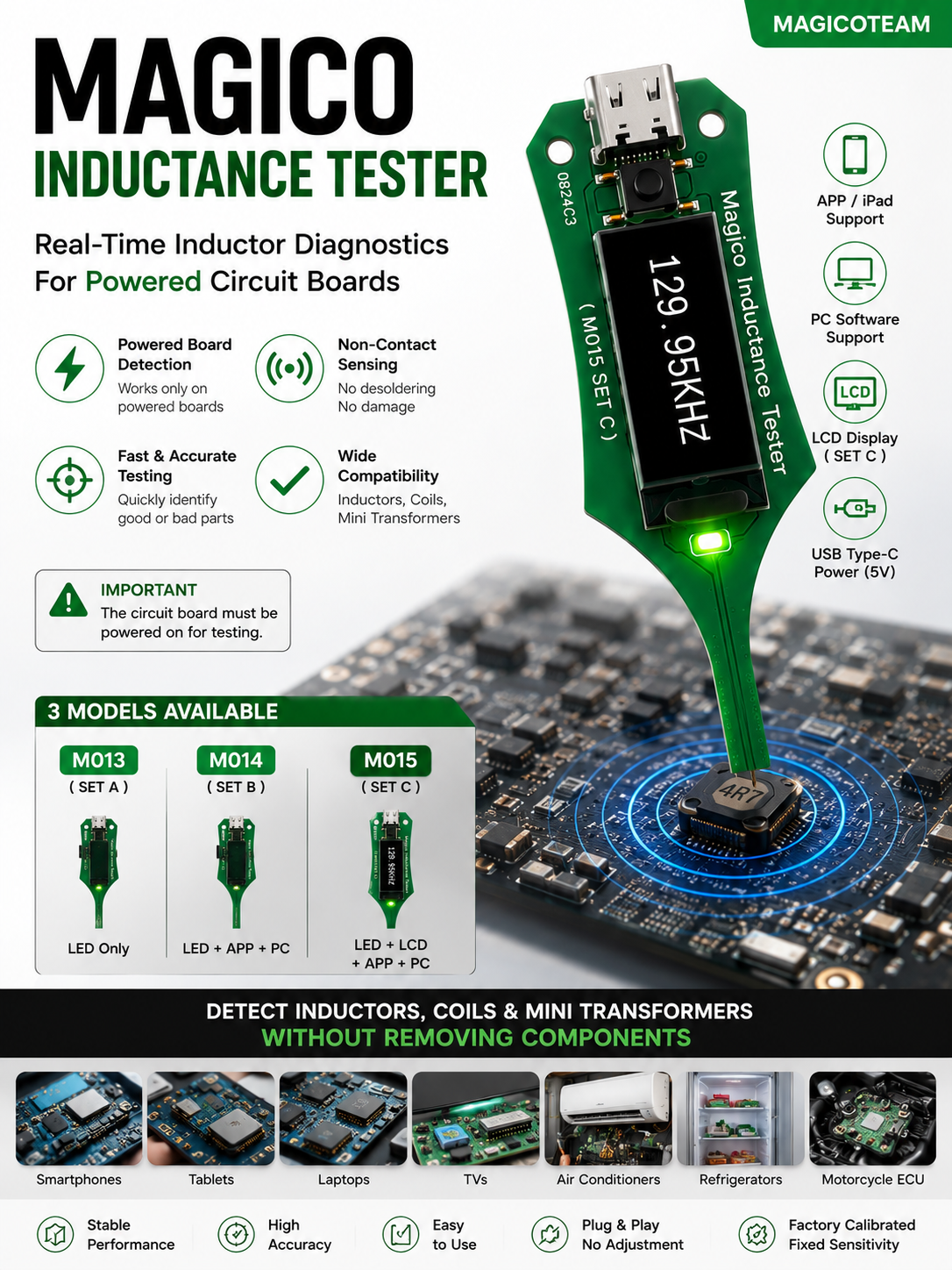

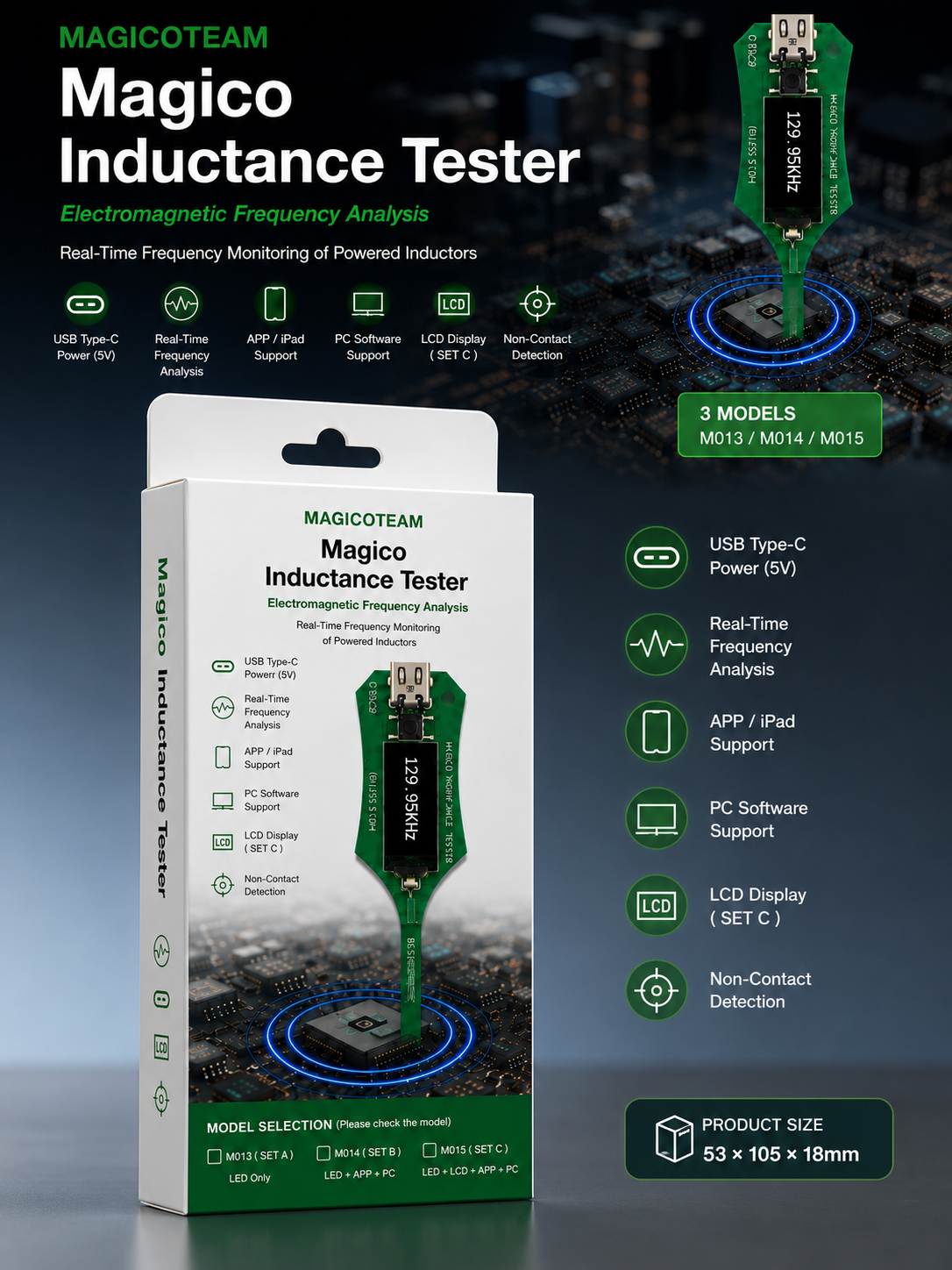

Magico M013 / M014 / M015 Electromagnetic Inductance Detector for PCB Motherboard Rapid Fault Detection

Magico M013 / M014 / M015 Electromagnetic Inductance Detector for PCB Motherboard Rapid Fault Detection

Features:

• Inductance Testing: Quickly detects and analyzes inductance values for efficient electronic repair and diagnosis.

• Electromagnetic Field for Frequency Analysis: Provides a real-time electromagnetic field for frequency monitoring for accurate troubleshooting of charged inductors.

• Non-Contact Testing: Safely detects electromagnetic fields without direct contact, preventing damage to sensitive components.

• USB-C Power Supply: Provides 5V power via a USB-C interface for convenient portability.

• Real-Time Monitoring: Supports continuous electromagnetic field frequency analysis for rapid response during testing and repair.

Specifications:

• Part Name: M013/M014/M015 Inductance Tester

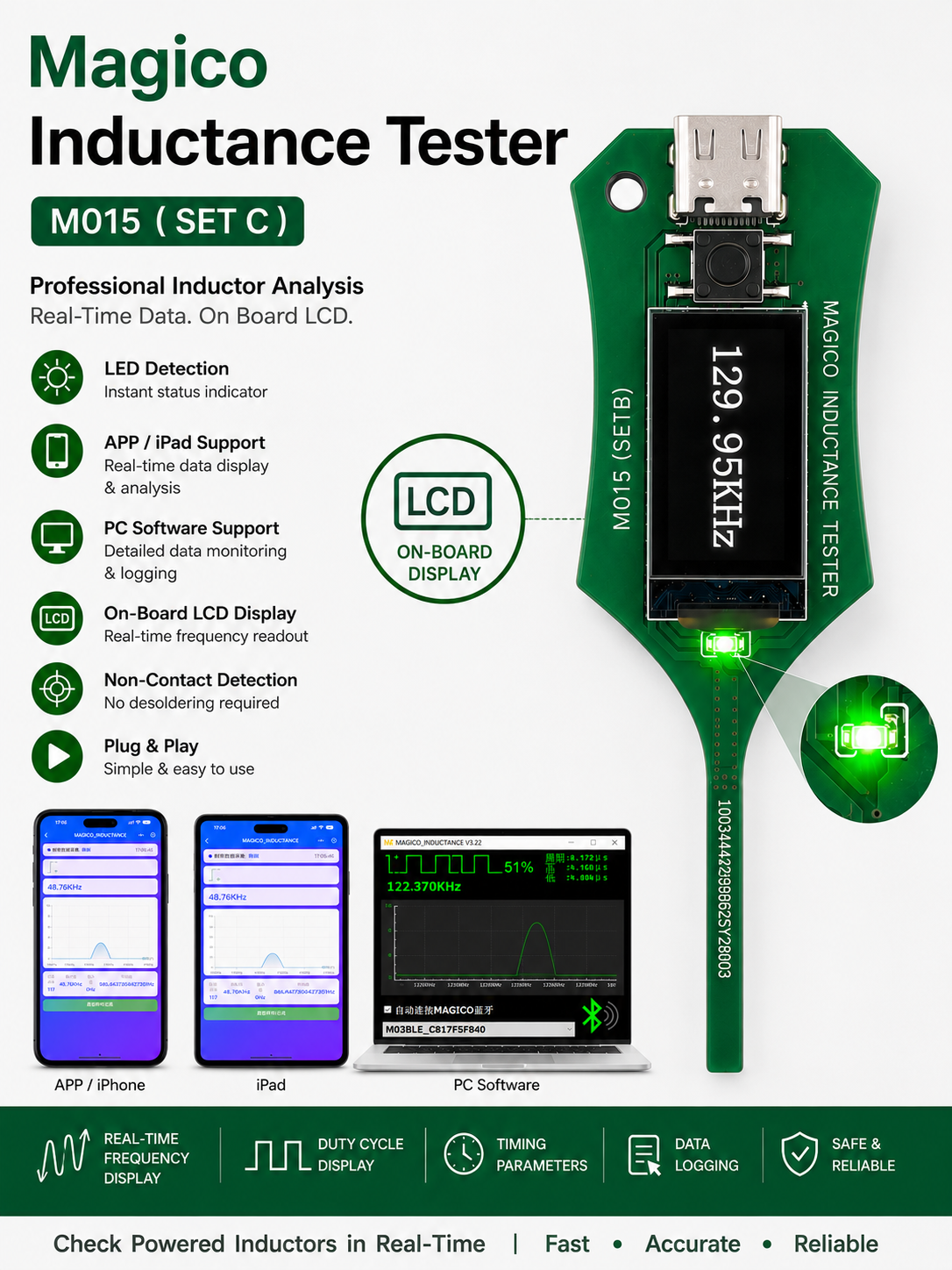

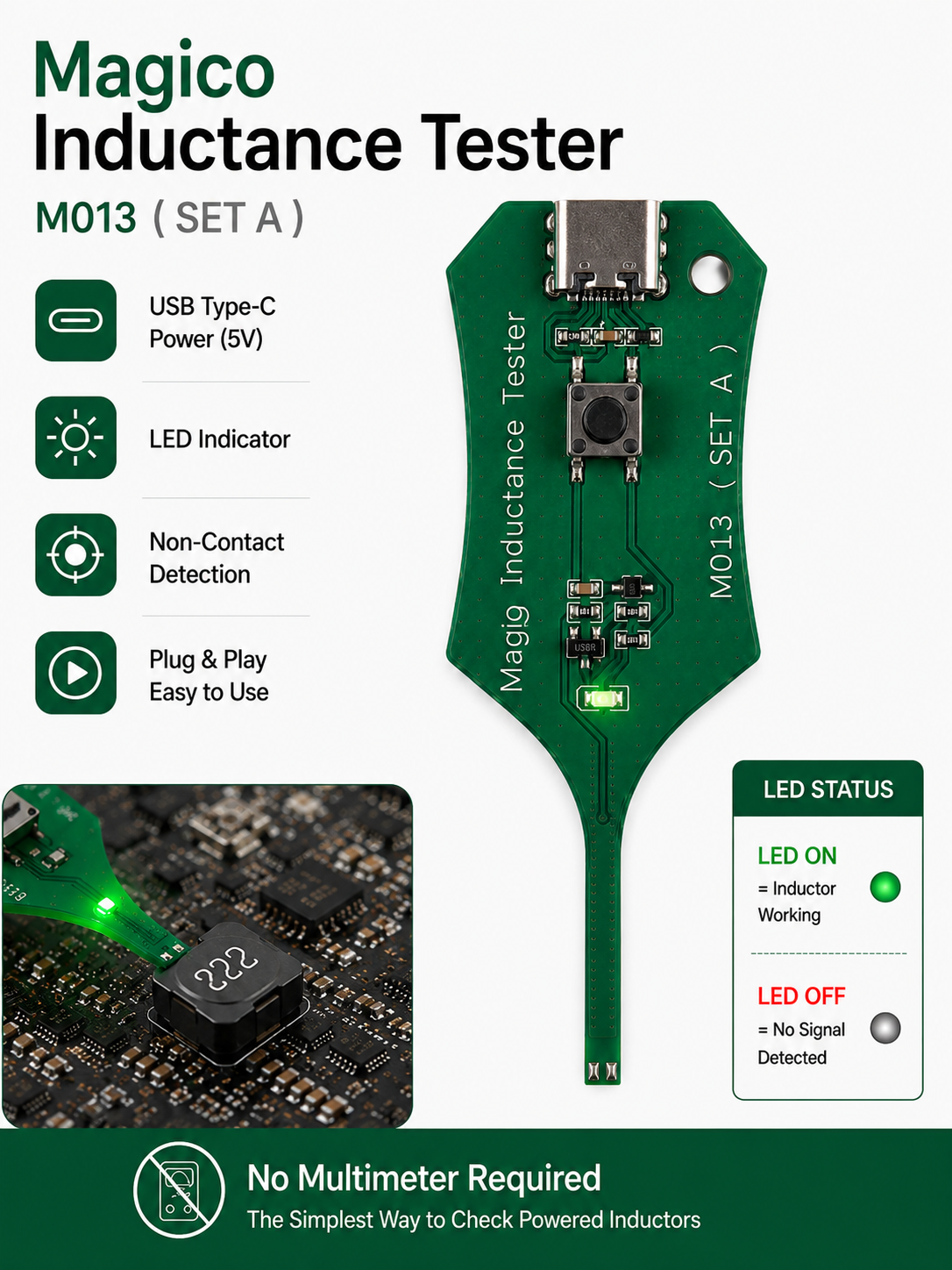

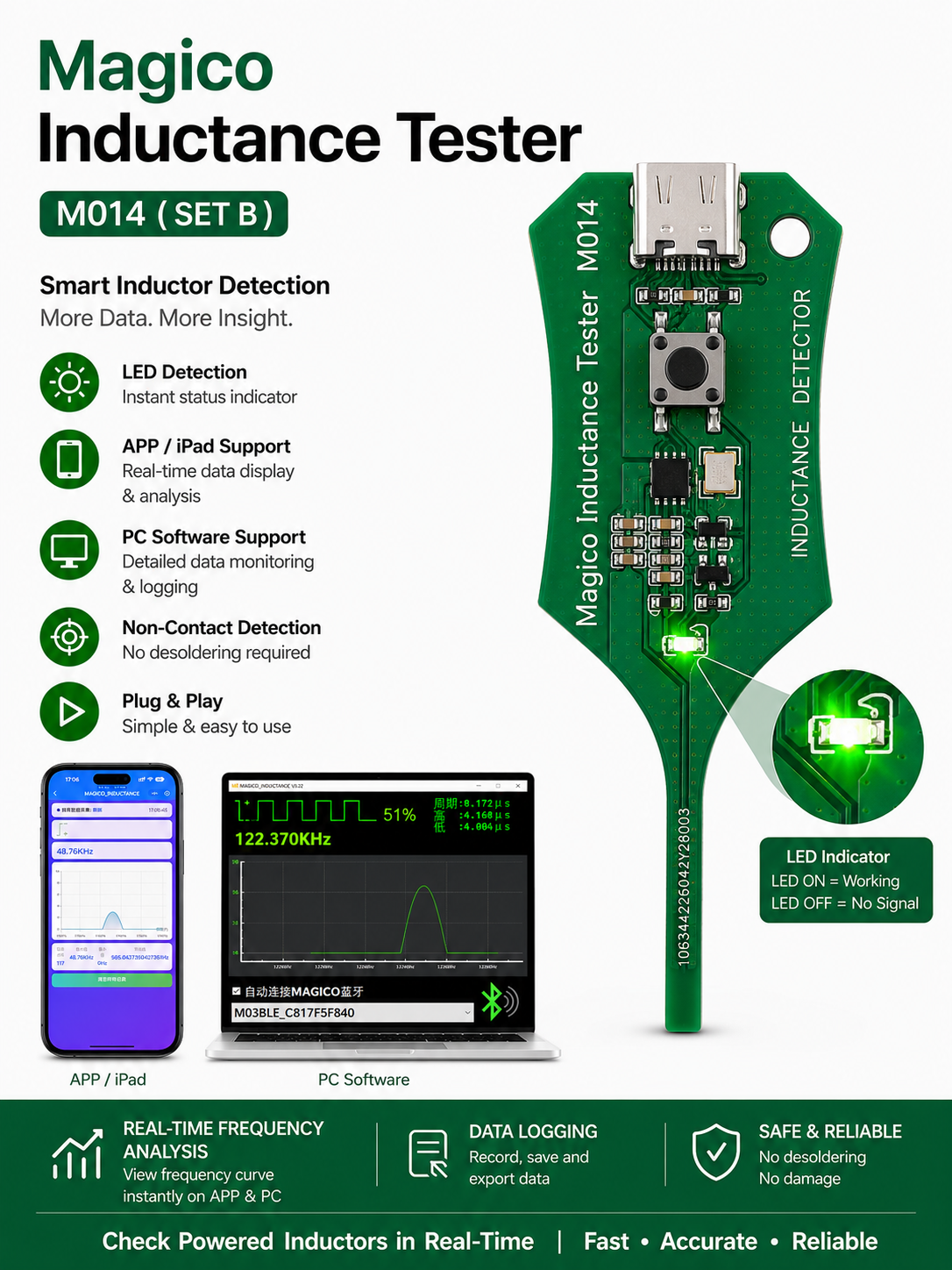

• Model: M013: Not compatible via application; M014: Compatible via application; M015: Digital Display Version

• Compatible via application

• Material: ABS

• Color: Green

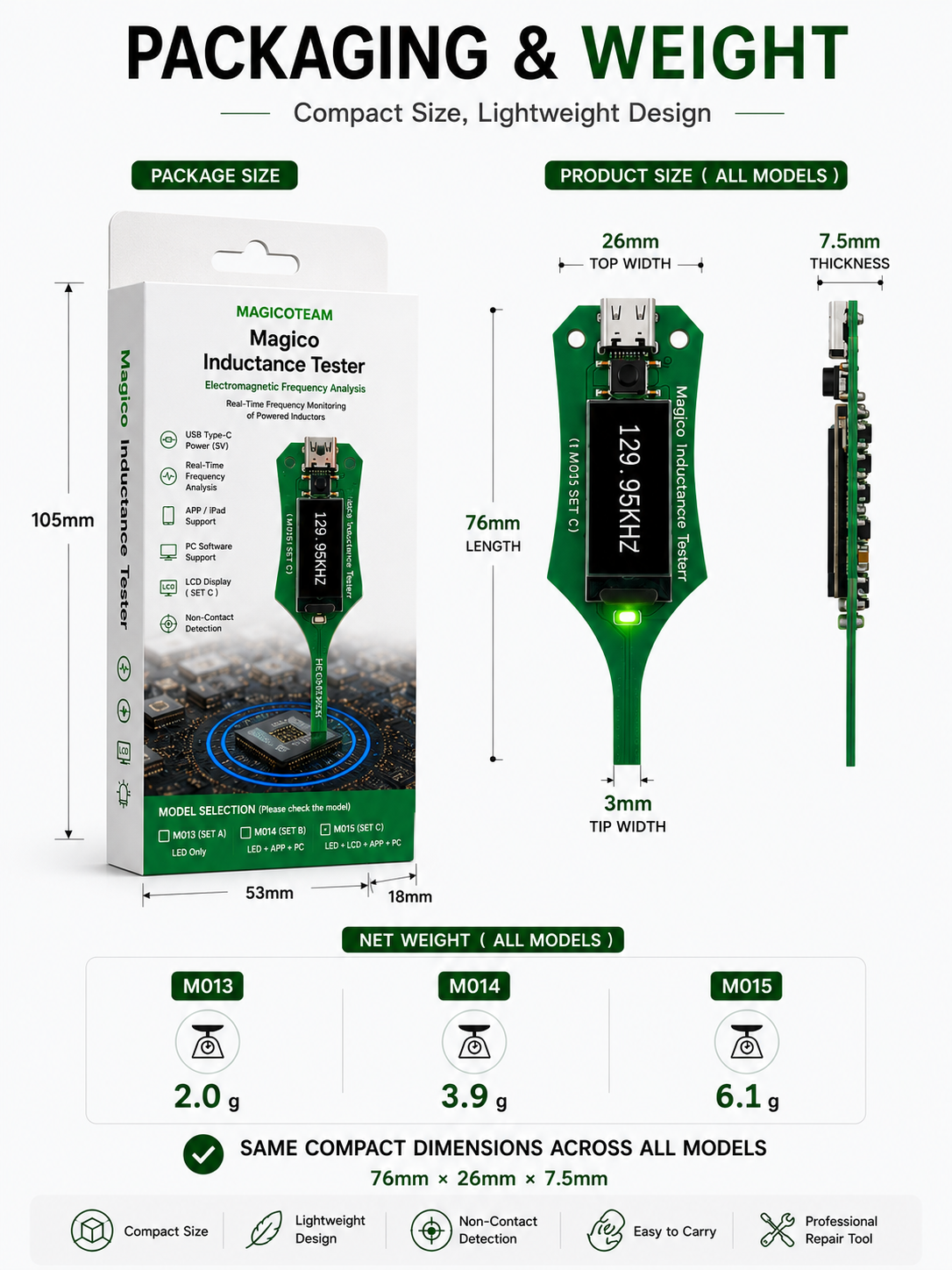

• Size: 75*27mm

Package includes:

• 1 x Inductance Tester
